Bain Marie & Hot Cupboards

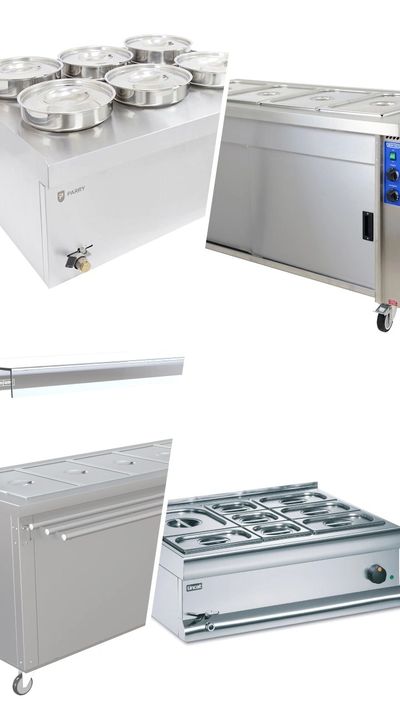

Bain Marie Units Overview
Bain marie units generally come in a standard GN container format or round pot set up. Standard gastronorm units will accommodate up to 2/1GN and multiples of such as 4 x 1/2 GN, 8 x 1/4 GN. Although these are a very simple catering appliance they will be a vital part of any commercial kitchen.
Bain marie units can be stand alone counter top or integrated into a hot cupboard, servery unit, mobile trolley or built into a bespoke granite, corian or stainless steel counter.
Table Top Units
Table top units can be used as a dry heat, with water or the option to use the same unit wet or dry depending on the daily serving requirements.
Units can be supplied as a standard size or made to any bespoke requirements.
Hot Cupboards Overview
Hot cupboards can be plain top, bain marie or hot plate. Usually used as a stationary item of equipment with shelves, heated gantry or lights above.
Sizes tend to be standard around multiples of GN container size even in the plain top models and either 800 or 900mm high.
Units can be supplied as a standard size or made to any bespoke requirements. This include the hot cupboard units as well as accessories such as heated gantry.
Units can be supplied with feet or castors however should not be see as mobile trolley. These are detailed in our Mobile Hot Trolley range.
Hot cupboards will also form a large proportion of a counter or fixed servery. See our counter section for more details.
Table Top Bain Marie
GN, Square or Rectangular Range
Below are a few ideas of the sizes and configurations. Any shape or size available. Contact us to discuss your individual requirements.

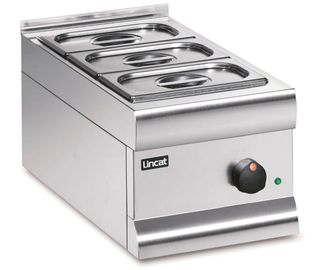

Electric
POA
300mm wide
Wet 1kW or dry heat 0.5kW
3 x 1/4 GN

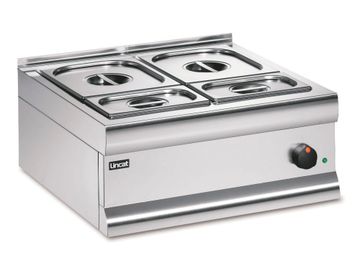

Electric
POA
450mm wide
Wet 1kW or dry heat 0.75kW
1 x 1/1 GN or 2 x 1/2 GN or 3 x 1/3 GN or 4 x 1/4 GN
Electric
POA
600mm wide
Wet 2kW or dry heat 0.75kW
2 x 1/2 GN and 2 x 1/4 GN or
1 x 1/1GN and 2 x 1/4 GN or 6 x 1/4 GN or
1 x 1/2 GN and 4 x 1/4 GN
Electric
POA
750mm wide
Wet 2kW or dry heat 1kW
2 x 1/2 GN and 2 x 1/3 GN and 3 x 1/6 GN or
2 x 1/1 GN or 4 x 1/2 GN or 6 x 1/3 GN

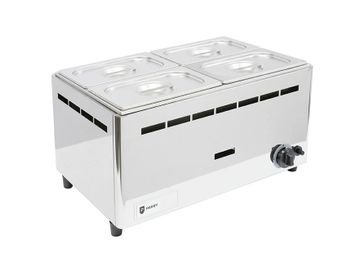

Gas
POA
560mm wide
Dry heat 2.7kW
1 x 1/1 GN or 2 x 1/2 GN or 4 x 1/4 GN or 1/2 GN and 2 x 1/4 GN or 3 x 1/3 GN

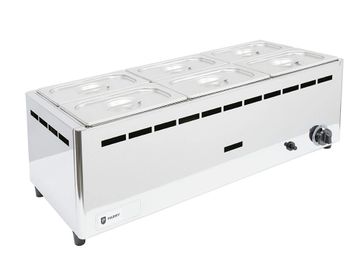

Gas
POA
835mm wide
Dry heat 2.7kW
1 x 1/1 GN and 2 x 1/4 GN or 3 x 1/2 GN or 6 x 1/4 GN or 1/2 GN and 4 x 1/4 GN or 3 x 1/3 GN and 2 x 1/4 GN
Round Bain Marie
Below are a few ideas of the sizes and configurations. Any shape or size available. Contact us to request your individual requirements.

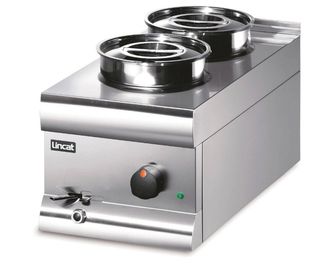

Electric
POA
300mm wide
Wet 1kW or dry heat 0.5kW
2 x 4.5lt round pots

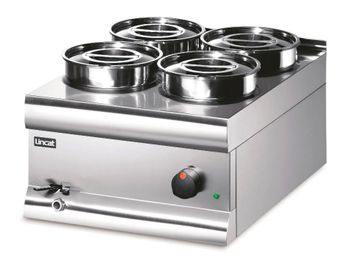

Electric
POA
450mm wide
Wet 1kW or dry heat 0.75kW
4 x 4.5lt round pots

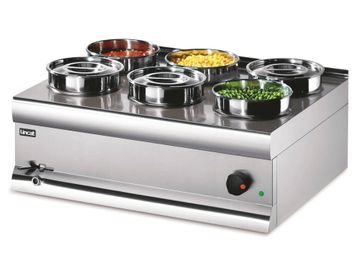

Electric
POA
600mm wide
Wet 3kW or dry heat 1kW
6 x 4.5lt round pots
Many more options available.
Hot Cupboards
Standard Range
Our range of hot cupboards is vast and we also make bespoke sizes. Please see below some ideas of popular sizes and models

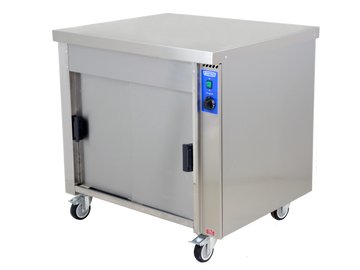

Plain Top
POA
2 GN size
884w x 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees

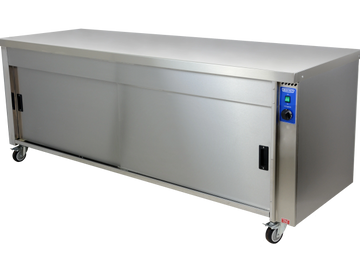

Plain Top
POA
3 GN size
1212w x 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees
Plain Top
POA
6 GN size
1212w x 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees
Bain Marie Top
POA
Wet or dry well bain marie
3 GN size
1212w 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees
Bain Marie Top
POA
Wet or dry well bain marie
4 GN size
1540w 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees
Bain Marie Top
POA
Wet or dry well bain marie
5 GN size
1868w 750d x 900h mm
Sliding doors
Internal shelves
Fan assisted heating 30 - 110 degrees
Bespoke Colour Range
Our range of hot cupboards is vast and we also make bespoke sizes. Please see below some ideas of popular sizes and models

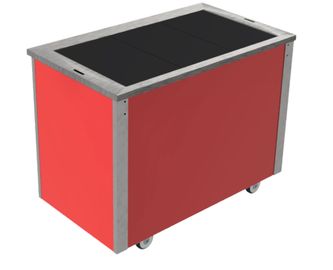

Hot Top
POA
3GN size
1158w x 680d x 900h mm
Ceram heated top with hot cupboard
Plain Top
POA
2 GN size
830w x 680d x 900h mm
Stainless steel top with hot cupboard

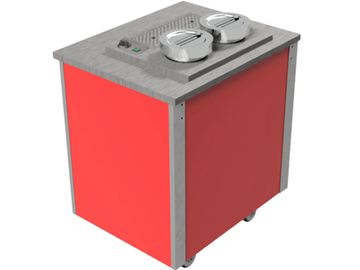

Soup Station
POA
2 x 4.5 litre soup wells
830w x 550d x 900h mm
Controlled heat distribution

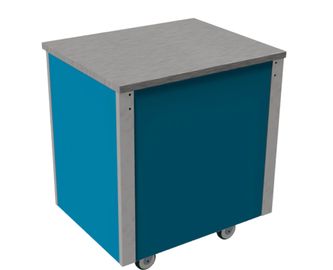

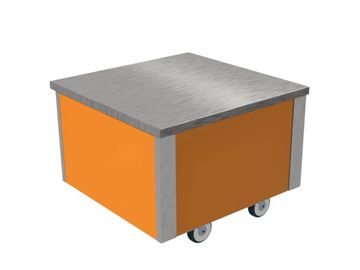

Low Level Units
POA
Stainless steel top
680w x 680d x 500h mm
Self Serve Section
POA
Hot or cold display and servery
Storage or heated base
Front or rear loading
Endless Colours
POA
Choose from our standard colour/ wood effect range or match your existing colour
Additions
All our hot cupboard range have many options to add onto the base unit with shelves, heated gantry, tray slide, handles etc. Some examples below
Add Gantry
POA
3 GN size hot top with hot cupboard base
Additional single heated gantry
Variable heat control on gantry
Double Gantry
POA
3 GN size plain top with hot cupboard
Additional double heated gantry
Each gantry individual variable heat control

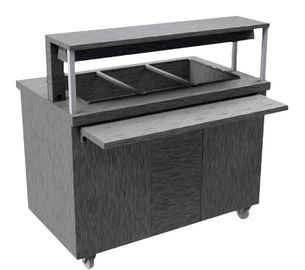

Tray Slide
POA
3 GN size bain marie top with hot cupboard
Additional single heated gantry
Additional solid tray side (tube style available)
Tray slides can be fixed or drop style
Contact us to discuss your requirements
